Surface Mount

Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration.

Products Available:

  • 100 OHM SURFACE MOUNT...375" W/2.0L/2 WIRE / 26 AWG TEFLON.. LEADS / 180"

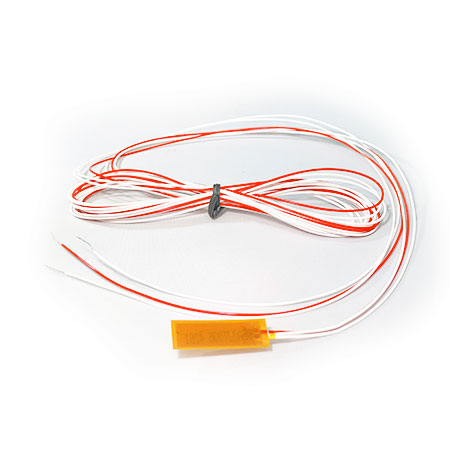

  • RTD 10o OHM SURFACE MOUNT...75" W X 1.75" L, KAPTON, 84" REFLON LEADS...
  • RTD 100 OHM SURFACE MOUNT...75" WIDTH. 1.25" LENGTH, KAPTON..3 WIRE TEFLON LEADS, 2 WHITE 1 RED.. TEFLON JACKET / 72" LEADS
  • 201514..RTD 10o OHM SURFACE MOUNT... 0.05 T X 0.5" W, X 1.25" L.. 3 WIRE, TEFLON LEADS WITH DRAIN WIRE, TEFLON JACKET OVERALL
  • RTD 10 OHM SURFACE MOUNT... 1.5" LENGTH - 1.0"WIDTH - .025" THICK - 96" TEFLON - 24 AWG
  • RTD 120 OHM SURFACE MOUNT
