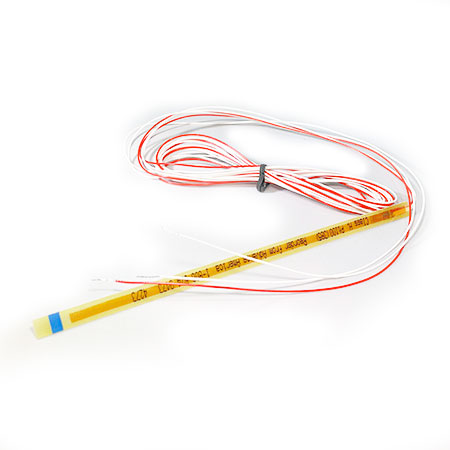

Slot Type

Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration.

Products Available:

• 100 OHM SLOT RTD/ ROUND WIRE/ WHITE TEFELON JACKET.. 10" L x 0.260" W x 0.030" T, 120" LEADS.... BRADON & CLARK
• 1000 OHM SLOT RTD..6.0" L /.260" W / .078" T..2 WIRE / 22 AWG TEFLON LEADS / 120"L
• RTD 100 OHM SLOT ..SHIELDED LEADS... 308012
• RTD 100 OHM TYPE..0.026" THICK, 0.260" WIDTH, 8" LENGTH, 24 AWG TEFELON LEADS, 96" LEADS
• RTD 10 OHM TYPE..8.0" LENGTH  - .260" WIDTH - .30"THICK -..96" LEADS - 24 AWG - 2 WHITE, 1 RED
• RTD 120 OHM SLOT.. 10"L, .260W, .030T, 96" LEADS, 26 AWG
