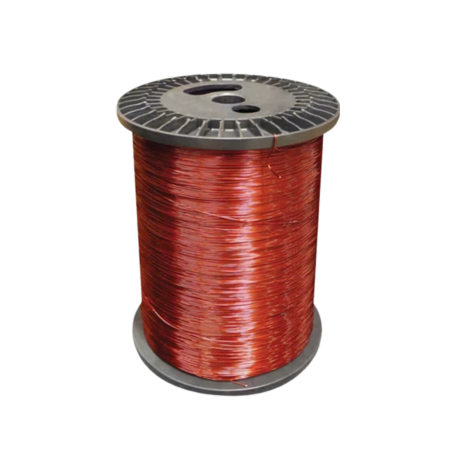

Magnet Wire

Our Inverter Duty Heavy Film is a high-performance dual-film insulation system designed for critical electrical applications. Featuring a modified polyester base and a polyamideimide overcoat, this insulation is engineered to operate continuously at 200°C, offering exceptional abrasion resistance, solvent resistance, and overload protection. It is ideal for use in inverter-driven motors and other demanding electrical systems where durability and reliability are paramount.

Key Features:

  • High-Temperature Performance: Operates reliably at temperatures up to 200°C for demanding environments.
  • Dual-Film Construction: Combines the flexibility of modified polyester with the durability of a polyamideimide overcoat.
  • Abrasion Resistance: Withstands mechanical wear, ensuring long-lasting performance.
  • Chemical Resistance: Resilient against solvents and chemicals for stable operation in harsh environments.
  • Overload Protection: Provides reliable insulation under overload conditions for enhanced safety.

Available Options:

  1. Gauges:
    • From 10 AWG to 34 AWG
    • Half sizes available upon request for custom applications
  2. Reel Sizes:
    • 10 lb. reels
    • 15 lb. reels
    • 20 lb. reels
    • 30 lb. reels
    • 40 lb. reels
    • 80 lb. reels

Applications:

  • Inverter-driven motors
  • High-efficiency transformers
  • Electrical equipment in high-temperature and high-stress environments

Why Choose Inverter Duty Heavy Film?
Engineered for superior durability and performance, our Inverter Duty Heavy Film insulation ensures reliable operation in even the most challenging conditions. With a wide range of sizes, gauges, and reel options, including custom half sizes, this insulation meets the specific needs of modern electrical systems.

SKU: N/A Category: Tags: , , , ,

Additional information

AWG

14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27

Insulation Type

HP 200, Inverter duty

Spool Size (lb/reel)

10 lb, 20 lb, 30 lb, 40 lb, 80 lb
