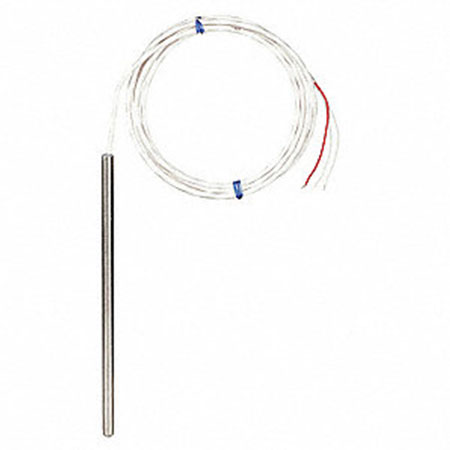

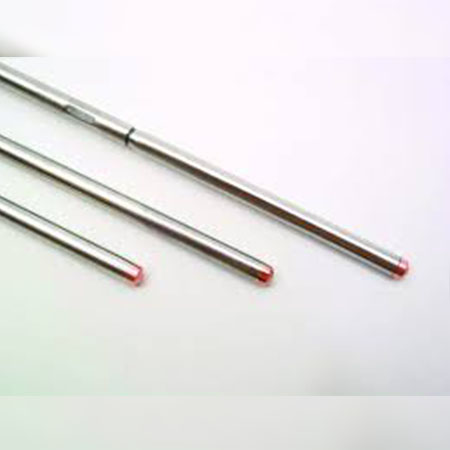

Bearing RTD Probes

Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration.

0.188” & 0.250” diameter available

36” length
Pt100(392) +/- 0.5% @0 Degrees Centigrade
Cuttable 316ss Case
Copper allow tip
3-wire 96” AWG 22 TFE leads
Dual element & insulated probes available
