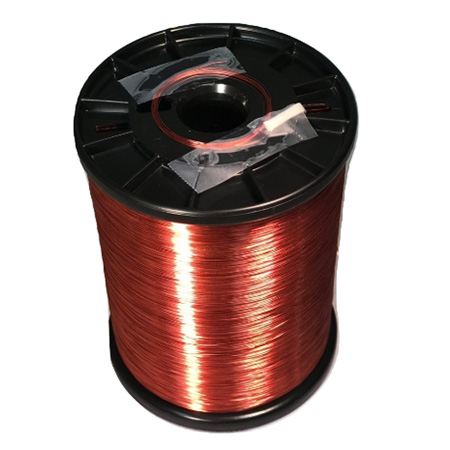

Coated copper survey trailing wire for close interval potential surveys.

Description:

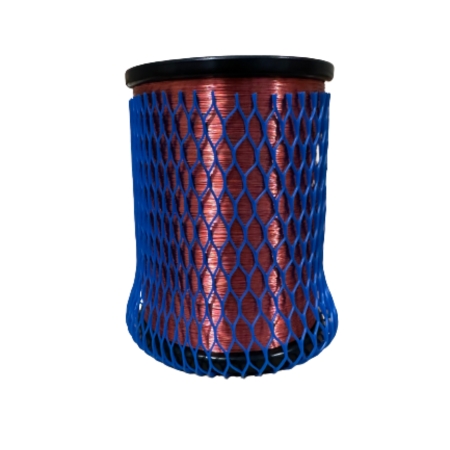

Elastic netting over each spool is available upon request for no additional charge. The netting serves as a reinforcement to further prevent any potential wire slippage or breakage; however, it is not essential for adequate usage.

Properties:

• High Resistance to heat
• High dielectric strength
• Excellent winding ease and flexibility
• Solderable without having to strip the insulating film
• High thermoplastic flow
• High resistance to abrasion

Specifications:

• • #34 AWG Wire
  • Spool flange diameter: 3 inches
  • Polyurethane/nylon overcoat;NEMA specification MW-27
  • Thermal class: 155 degree centigrade
  • Standard high-quality plastic spools equipped to fit MC Miller, Farwest, American Innovations, and BK Corrosion’s Hip/Backpacks
  • Minimum 18″ pigtails with strain relief sleeving at flange to prevent breakage.
